Small Oil Press

YZS series oil press is one kind of small oil press characterized by low investment, strong adaptability and high efficiency of oil production, etc. These screw oil presses, after more than ten years' investment and modification, are concise in structure, easy to operate, and similar in performance to the advanced oil press, which makes use of screw-driving force for pressing oil from such plant seeds as rape seeds, ground nuts, beans, sesame seeds, cotton seeds, and many other oilseeds crops.
This oil press machine is composed of feeder, gearbox, pressing cage, screw shaft and machine stand etc. This kind of screw oil presses utilizes the screw shaft which is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring. This oil press machine is in accordance with the standard JB/T9793.1-1999 for screw oil presses for farm use.

Images Of Small Oil Press

Small Oil Press	Heated Small Oil Press
Small Oil Press with Electric Motor	Small Oil Press with Diesel Motor

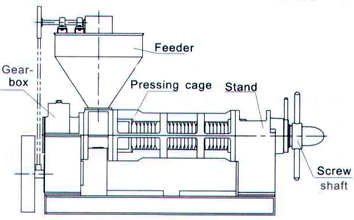

Small Oil Press Structure	Biodiesel Oil Press



Features of YZS series Small Oil Presses

• Cast iron machine base;
• Special gear box structure make the rotating speed averagely;
• Main parts of chamber through the processing of high-temperature tempering and low temperature quenching;
• Cake thickness can be adjusted once the machine stop running;
• Superior grade oil cake;
• Compact structure, stable function, simple maintenance.

Technical Data of Small Oil Press

MODEL	CAPACITY(kg/h)	POWER(kw)	NET WEIGHT(kg)	PACKING(mm)
YZS-68	40	5.5	130	1050*660*760
YZS-80	80-125	5.5	330	1320*440*695
YZS-95	160-200	11	420	1910*610*765
YZS-100	160-200	7.5	400	1860*550*695
YZS-120	200-300	11	700	2060*610*770
YZS-130	375-500	18.5	700	2320*700*780
YZS-160	550-700	18.5	920	2020*700*780
YZS-165	620-830	22-30	1600	2120*800*980

Welcome to contact us anytime you are interested in our small oil press. We are always at your service!
