Vegetable Oil Press

Vegetable oil press (model YZS-95) is composed of feeder, gearbox, pressing cage, screw shaft and edible vegetable oil press stand etc. It has better results to press olive,soybean and cotton seeds. This kind of vegetable oil screw press utilizes the screw shaft that is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.

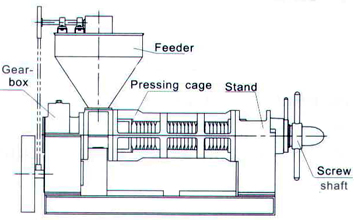

6YL-95 vegetable oil press Sketch of 6YL-95 vegetable oil press


Specification of Vegetable Oil Press YZS-95

  • Capacity: 2-3T per 24Hours
  • Power: 3-Phase 7.5 kW 12HP-1440rpm
  • Size: 1910 x 610 x 765mm
  • Weight: 620kg
Raw Material Capacity (kg/hr) Output Rate(%) Cake Residual (%)
Rape seeds Hot pressing 150-170 30-38 7.5-8
Cold pressing 75-95 28-35
Peanut Hot pressing 150-185 35-45 7
Cold pressing 65-95 32-40
Bean Hot pressing 135-160 10-16 6.5-7
Cold pressing 70-105 8-14
Sesame Hot pressing 150-185 44-47 6.5-7.5
Cotton seeds Cold pressing 95-105 10-14 5.5-8.5

Vegetable Oil Press Heated by Electricity

The series screw type vegetable oil press heated by electricity have function of heating and pressing. Before pressing, some parts of the presses such as the press container, press screw and press ring will be heated.

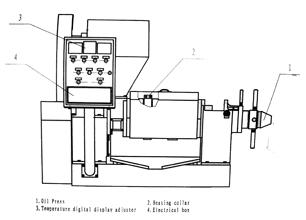

6YL-95 vegetable oil screw press  sketch of 6YL-95 vegetable oil screw press with heater

Specification of Vegetable 0il Screw Press YZS-95 with heater

  • Capacity: 3-4T/24hrs
  • Power of motor: 7.5 kw-1440rpm
  • Power of heater: 1.5kw
  • Control Cabinet: 380V, 50HZ, 3Phase

Features of Vegetable Oil Press YZS-95

＊ Cast iron machine base;
＊ Special gear box structure make the rotating speed averagely;
＊ Main parts of chamber through the processing of high-temperature tempering and low temperature quenching;
＊ Cake thickness can be adjusted once the machine stop running;
＊ Superior grade oil cake;
＊ Compact structure, stable function, simple maintenance.

Welcome to contact us in the follong form to get further info about our vegetable oil press, we are always at your service!
