Large Scale Oil Press



Large Scale Oil Press
These large scale screw oil presses for vegetable oil & biodiesel processing with big capacity which are mostly used in middle-large scale oil plants. They can be divided into two kinds: One is hot processing, which includes steam cooker and oil press. The steam cooker is used for oilseeds pretreatment before pressing. The other is the cold processing. The advantage of this kind of machine is lower temperature when press the seeds. It is about 80 degree, which can protect the nutrition element in the oil.
These are oil plants with big capacity, high oil output, low oil residual, light processed fats color, good quality, and rich nutrient.


Technical Data of Large Scale Oil Press


MODEL

CAPACITY(T/D)

POWER(KW)

NET WEIGHT(KG)

DIMENSION(MM)

200A-3

8-10

18.5

4300

2850*1850*3270

YZL18

6-10

37.7

3500

3176*1850*2600

YZL24

20

45

5000

2900*1850*3240

YZL28

40-60

50+11+4

9160

3740*1920*3843

YZL32

90-120

90+11+5.5

11000

4100*2270*3850



Images of Large Scale Oil Press

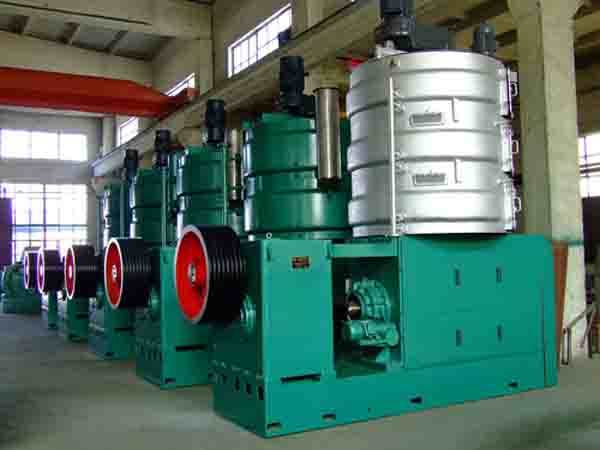

large scale oil press-1
Large Scale Oil Press-1

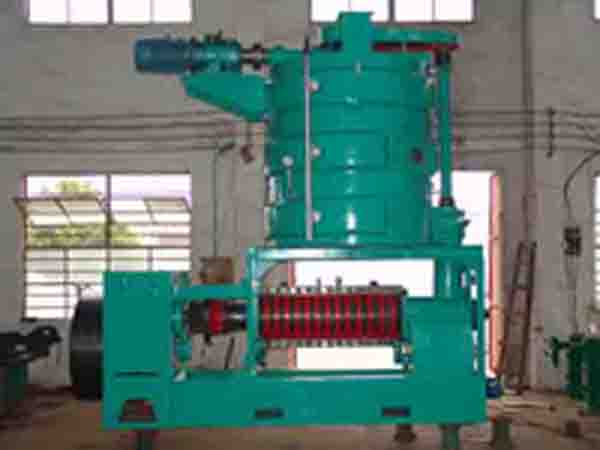

Large Scale Oil Press-2
